Goodman

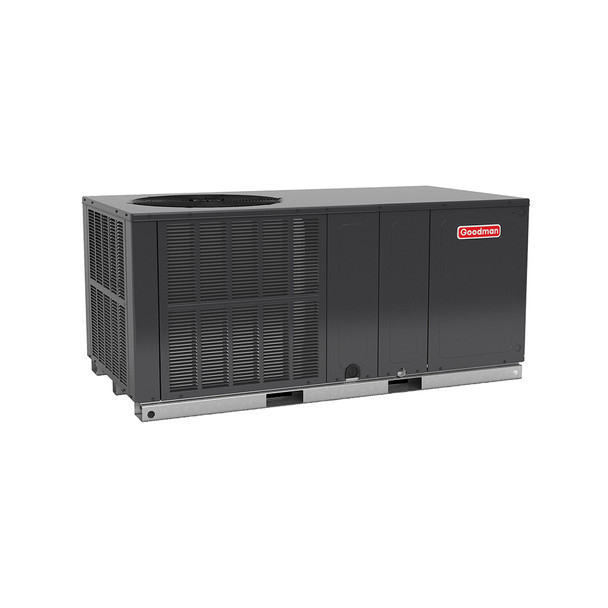

Goodman R-32 3.0 Ton 13.4 SEER2 Straight Cool - A/C Only Horizontal Package Unit (GPCH33631)

Write a Review
SKU:
BASE32222
MPN:
GPCH33631
Weight:
390.00 LBS
Shipping:
Free Shipping
$3,565.00

Additional Discounts At Checkout On Select Items!

Description

Goodman R-32 3.0 Ton 13.4 SEER2 Straight Cool - A/C Only Horizontal Package Unit (GPCH33631)

Standard Features

• Energy-efficient compressor

• Multi-speed ECM indoor blower motor

• Quiet horizontal discharge

• Copper tube/aluminum fin condenser coil

• All-aluminum evaporator coil

• Totally enclosed, permanently lubricated condenser fan motor

• Fully charged system

• 5 kW to 20 kW electric heat kit available as a field-installed option

• AHRI Certified; UL Listed

Cabinet Features

• Heavy-gauge galvanized-steel cabinet with

• architectural gray powder-paint finish powder-paint finish

• Louvered condenser coil protection

• Aluminum foil-facing internal insulation reinforced with fiberglass scrim

• Fully insulated blower compartment with convenient access panels

• Meets cabinet air leakage requirements when tested in accordance with ASHRAE standard 193

• One footprint for all tonnages

View AllClose

Additional Information

Model:
GPCH33631
Total BTU/h:
36,000
Sensible BTU/h:
27,700
SEER2:
13.4
EER2:
10.6
Blower Motor Type:
ECM
Blower Motor Horsepower:
3/4
Blower Speeds:
5
Indoor Blower FLA:
5.4
Indoor Nominal CFM:
1,140
Metering Device:
Piston
Drain Size (NPT):
3/4
Refrigerant Charge (oz.):
64
Outdoor/Fan Motor FLA:
1.4
Fan Motor Horsepower:
1/4
Blade Diameter:
22
Compressor Type:
Scroll
Compressor Stage:
Single
Compressor RLA:
14.4
Compressor LRA:
112
Phase:
1
Voltage (Frequency 60 Hz):
208-230
Min. Circuit Ampacity:
24.8
Max. Overcurrent Protection:
35
Decibels:
76
Operating/Shipping Weight (lbs):
380 / 390
Unit Length (in.):
34
Unit Width (in.):
66
Unit Height (in.):
35
Supply Adapter Size (in.):
14 x 14
Return Adapter Size (in.):
14 x 24
