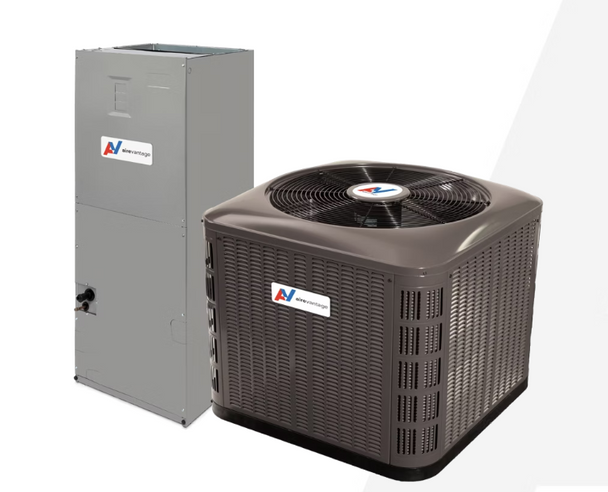

AireVantage 2.0 Ton 14.3 SEER2 Straight Cool Split System (USA4BE5M1SN24K + B65BMMX24K-A)

Write a Review
SKU:
BASE35102
Weight:
260.00 LBS
Shipping:
Free Shipping
$2,840.00

Additional Discounts At Checkout On Select Items!

Description

AireVantage 2.0 Ton 14.3 SEER2 Straight Cool Split System (USA4BE5M1SN24K + B65BMMX24K-A)

USA4BE5M1SN24K Outdoor Condenser Unit Specifications:
Unit Size:
Height: 30.75"
Length: 35.5"
Width: 35.5"
Weight: 160.9lbs.
Tonnage: 2

Ratings/Certifications:
Cooling Capacity: 24,000-24,000
EER2: 11.7-11.7
SEER2: 14.3

Air Movement:
Condenser Fan CFM: 3000
Condenser Motor H/P: 1/8
Condenser Motor RPM: 825
Condenser Motor Speeds: 1
Condenser Motor Type: PSC (Permanent Split Capacitor)

Electrical:
Cycle/Hertz: 60 Hz
Full Load Amps (FLA): 11.15
Lock Rotar Amps (LRA): 60.2
Maximum Overcurrent Protection (MOCP): 20
Phase: Single
Rated Load Amps (RLA): 10.24
Voltage: 208-230VAC

Refrigeration:
Liquid Line Size(OD): 3/8"
Suction Line Size(OD): 3/4"
Refrigerant: R-454B

B65BMMX24K-A Indoor Air Handler Specifications:
Unit Size:
Height: 43.3
Length: 22
Width: 14.18
Weight: 98
Tonnage: 2

Ratings/Certifications:
CFM: 700-1,010
CFM Heating: 700-1,010
Cooling Capacity: 24,000-24,000
Heating Capacity: 24,000-24,000

Air Movement:
Air Flow Direction: Multi-Positional
Blower Motor H/P: 1/2
Blower Motor RPM: 1,080
Blower Motor Speeds: 3
Blower Motor Type: PSC(Permanent Split Capacitor)
Blower Wheel Width: 6"

Refrigeration:
Liquid Line Size(OD): 3/8"
Suction Line Size(OD): 3/4"
Drain Connection Size: 7/8"
Metering Device: TXV/TEV - Thermostatic Expansion Valve
Refrigerant: R-454B
